Dragontie™ FRP Formwork Tie Rod (Fiberglass Formwork Z Bar / GFRP Composite Form Ties / Fiberglass From Ties / Fiberglass Coil Rod / FRP Formwork Tie Bar ) whcih is produced by the pultrusion process technology and special mechanical production methods with high-quality raw materials of fiberglass reinforced and vinyl/epoxy resin according to different application environments.
Being excellent characteristics, FRP Formwork Tie Rod is an ideal alternative when the steel formwork tie rod can not be removed after the concrete is poured. FRP formwork tie rods are not rusted like conventional formwork tie rod causing the possibility of concrete cancer. Meanwhile, there is no necessity for conduits which will need to be waterproofed and patched to prevent water penetration when applied in water retaining structures. FRP formwork tie rod can be easily cut off with a smooth cut surface and remain the same color as concrete.
Moreover, FRP formwork tie rod is compatible with all common steel formwork tie fittings which can save big costs and make installation more convenient.
Benefits:
High anti-corrosion
Easy to cut
Convenient Installation
Permanent application
High tensile strength
High loading
Non-magnetic
Low thermal conductivity
Fully compatible with standard Z-Bar fittings

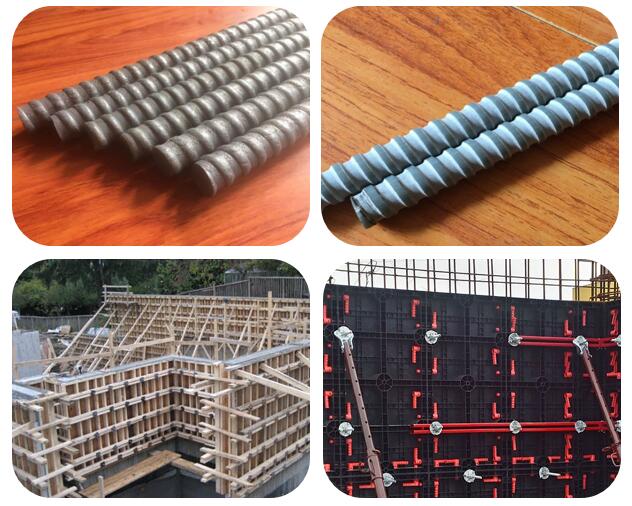

Applications
• Conventional formwork
• Single sided formwork
• Dams
• Water tanks
• Wastewater treatment plants
• Columns
• Architectural work

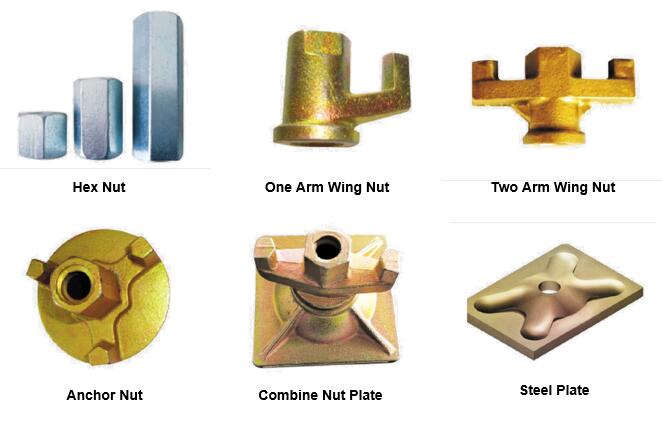

Formwork accessory
